UV FLATBED PRINTER
High-Precision UV Flatbed Printing Solutions
Model: 4050
Brand: Colortech
Country of Origin: China
Application
Phone Case
Mug
Boot
Thermos Cup
Metal Plate
Notepad
Signage
Vial
Show In Details

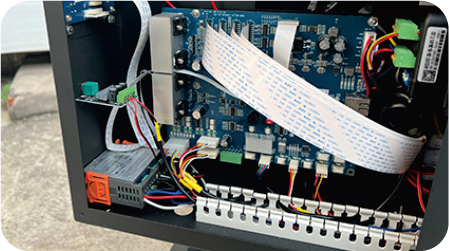

HOSON Board
The domestic high-end board system has good stability, low failure rate and durability.

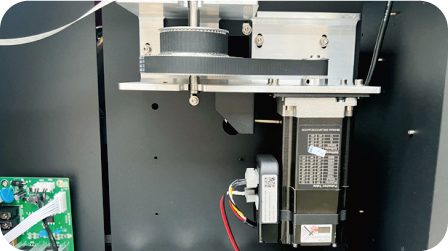

Servo Motor
High-quality servo industrial motor drive system ensures the accuracy and stability of equipment printing.

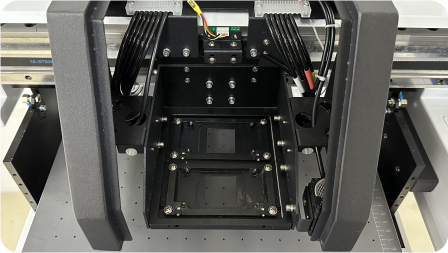

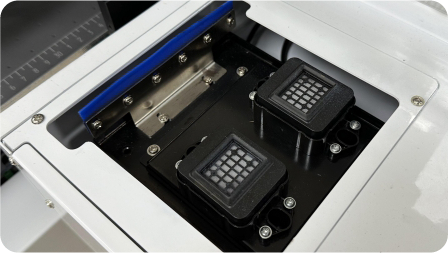

Ink Stack
Lifting aluminum alloy ink stacker, intelligent automatic cleaning and maintenance nozzle.
Trolley
Aluminum alloy thickened integrated lifting trolley frame, The trolley can be lifted and lowered as a whole, which is convenient to use.

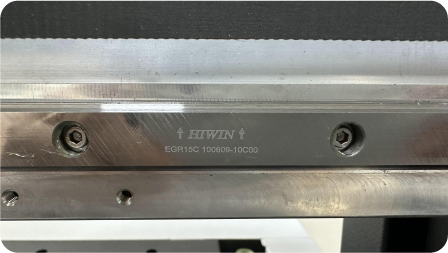

Imported Rails
The imported HIWIN silent linear guide rail is adopted to ensure the high-precision and smooth operation of the equipment and longer service life.

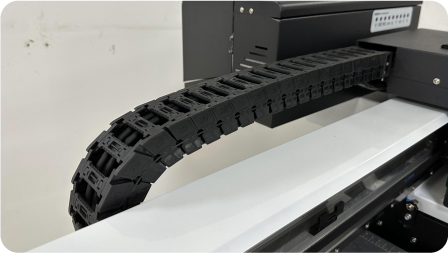

Tank Chain
The use of high-quality tank chains greatly increases the service life.

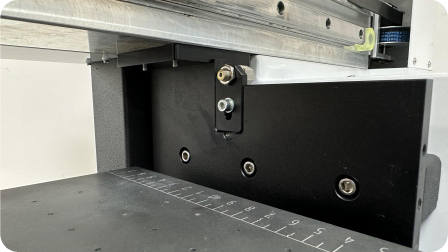

Automatic Height Measurement
One-touch automatic height detection and automatic height adjustment to prevent damage to the nozzle.

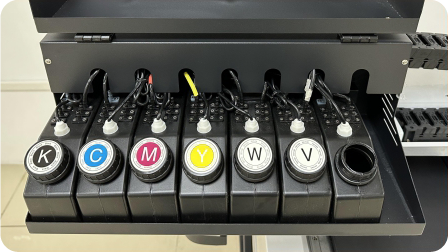

Ink shortage Alarm and White Ink Mixing System
The while ink automatic mixing system avoids the occurrence of precipitation and nozzle blockage when the white ink in not used for a long time, and effectively protects the nozzle while saving the cost of white ink control.
Product Parameter
Model
4050
Maximum Print Size
400 x 500mm
Print head
XP600 / TX800 / i1600 / i3200
Print head quantity
2
Printing Accuracy
720dpi / 1080dpi / 1440dpi / 2160dpi / 2880dpi
Print head Cleaning
Automatic
Type of Ink
UV Ink
Platform Height Adjustable
0-180mm
Print Material
Acrylic, glass, Stainless steel, mobile phone case, ceramic tile, KT board, wood board, aluminum-plastic board
Rated Power
500W
Ink Cartridge Type
Intelligent induction ink shortage alarm cartridge
White Ink Stirring Function
Yes
Rotary Shaft Device
Optional
Platform Suction
Yes
Print Interface
Gigabit Network
Working Environment
Temperature 20 – 30C
Software
Riprint / MainTop / Photo Print
Operating System
Win7 / Win10 / Win11
Machine Size / Weight
1000 x 960 x 770mm / 109kg
Packing Size / Weight
1080 x 1100 x 890mm / 135kg
Printing Speed
XP600-2
6pass 3m^2/h
8pass 1.5m^2/h
12pass 0.8m^2/h
TX800-2
6pass 3m^2/h
8pass 1.5m^2/h
12pass 0.8m^2/h
i1600-2
6pass 3m^2/h
8pass 1.5m^2/h
12pass 0.8m^2/h
i3200-2
6pass 5m^2/h
8pass 4m^2/h
12pass 3m^2/h
